“Optical Sieve” Makes Invisible Nanoplastics Visible with a Test Strip
Researchers at the University of Stuttgart (Germany), in collaboration with the University of Melbourne (Australia), have developed a breakthrough detection method for nanoplastics. Dubbed the “optical sieve”, this new tool works like a test strip and allows detection, sizing, and counting of tiny plastic particles (0.2–1 µm) using only an ordinary optical microscope and a specially engineered test strip.
How the Optical Sieve Works

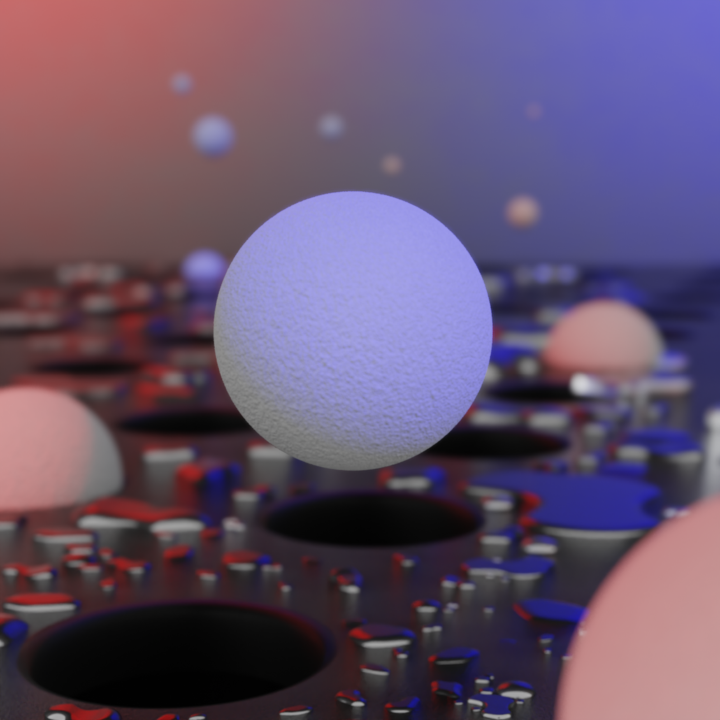

- Test strip structure: The optical sieve is made from a semiconductor substrate into which microscale holes (called “Mie voids”) are etched.
- Resonance-based color change: When light hits these voids, they reflect specific colors depending on their size and depth. If a nanoplastic particle lands in a void, the color changes visibly under a standard optical microscope, indicating presence, size, and count of particles.
- Range: The method works for particles from about 0.2 to 1 micrometer in diameter. Voids can be designed with different sizes so that only particles of the appropriate size are retained.
- Proof of concept: The researchers tested synthetic samples (spherical plastic particles) added into lake water containing organic material and sediment. They successfully counted and sized particles at known concentrations using this optical sieve.
Why It Matters
- Traditional methods like scanning electron microscopy are expensive, slow, require heavy technical training, and are not portable.
- This optical sieve is relatively low-cost, faster, simpler to use, and could be adapted for on-site detection in water, soil, or possibly biological samples (blood, tissue), enhancing our ability to monitor nanoplastic pollution.
Limitations & Future Work
- So far the test has been validated on spherical particles; non-spherical particles impose extra complexity. Researchers plan to adapt the method for non-spherical shapes.
- Distinguishing between different types of plastic via this method hasn’t yet been demonstrated.
- Environmental (real) samples pose challenges: mixed organic matter, background noise, interference, etc., need to be addressed in further studies.
How Ecotox Environmental Services Can Help
Ecotox already has services that align well with bringing this new detection method into broader use:
- Water & Sediment Sampling and Nanoplastic Analysis
- We can use this or complementary detection tools to sample environmental sites (rivers, coastal waters, sediment) and quantify nanoplastics using test strips or more advanced microscopy.
- Portable On-Site Monitoring Design & Validation
- Design workflows or pilot programs to deploy such optical sieve tools on-site, validate them under field conditions, calibrate for local sample types.
- Fate & Transport Modeling of Nanoplastics
- Once concentration + size distribution data are obtained, model how nanoplastic particles move, settle, degrade, or accumulate in ecosystems.
- Environmental Impact & Health Risk Assessments
- Assess toxicity potential, exposure risks, especially for human or ecological receptors (soil organisms, aquatic biota) from nanoplastic presence.
By combining Ecotox’s sampling & analysis capabilities with modeling and impact assessment, we help transform promising lab tools like the optical sieve into practical environmental monitoring and protection solutions.
